Core Technology——adsorption Tower Structure

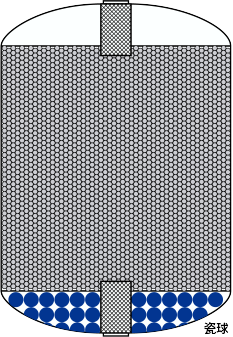

Common Adsorption Tower 1
Low cost, high amount of ineffective packing, poor drainage at the bottom, large pressure drop during entry and exit, and ceramic balls increase thermal load.
Common Adsorption Tower 2
Complex structure, high resistance, and difficult to replace and maintain adsorbents.

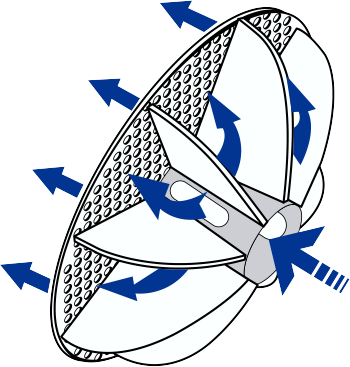

Yangoo Patent Technology
Tunnel efficiency is low, effective filling is high, pressure drop assistance is small, avoid adsorption, foaming, and powder hydration.
Core Technology——Special Adsorbent
指标项目
Φ3 ～5mm
Φ4～6mm
Surface Area比表面积m2/g≥
300
280
Cubage孔容积 cm3/g≥
0.38
0.38
Adsorption rate静态吸附量%（R，H=60%）
17.0
17.0
Density堆积密度g/ml≥
0.740
0.70
Intensity抗压强度N≥
160~180
180~210
磨耗率wt%≤
0.20
0.20
烧失重%（300～1000℃）
5.50~7.0
5.50~7.50

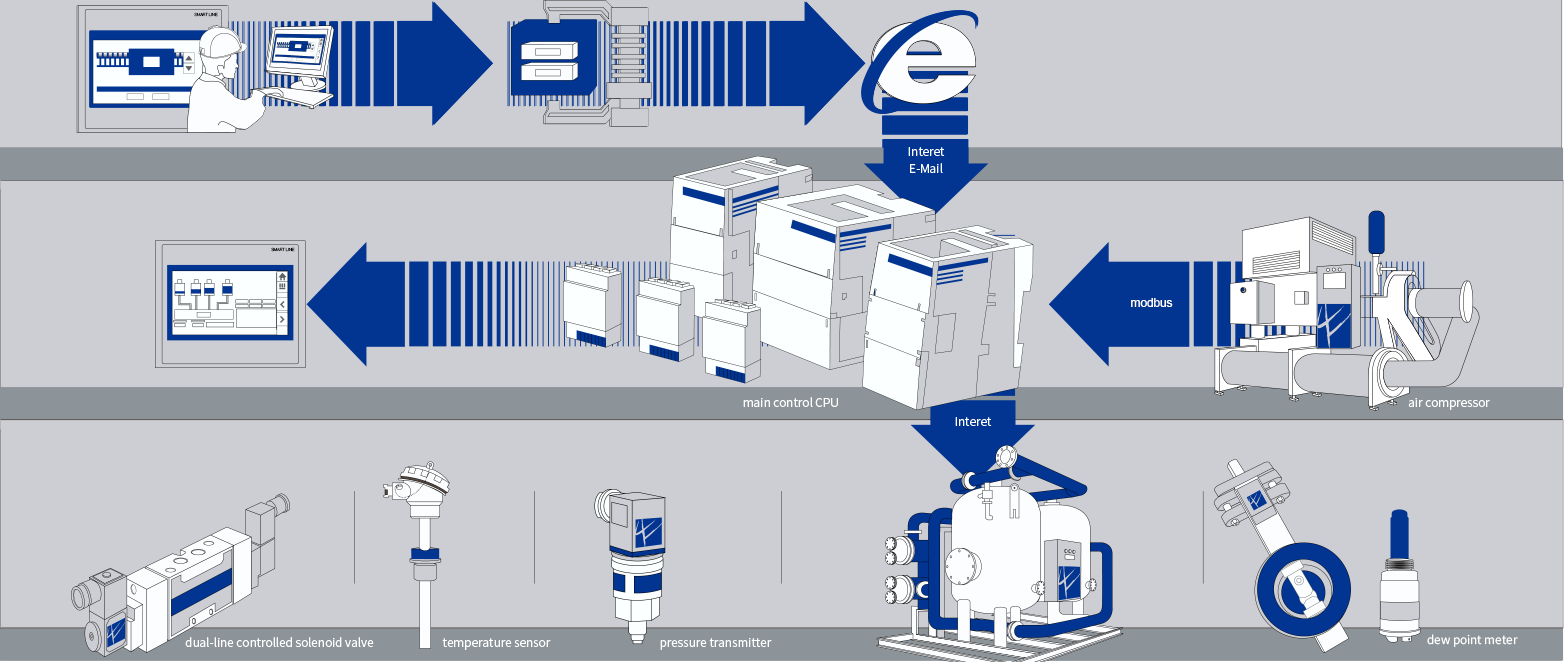

Core Technology——Control System
Name
YangooTechnology
Other Companies
Temperature Sensor
Quantity:8
Quantity:5
Pressure Sensor
Quantity:4
Quantity:0
Dew Point Meter
Quantity:1
Quantity:1
Standard Configuration
Optional Component Inclusion Rate 90%
Controller CPU
SR60+DR08+AE08+AE08+AQ04
SR40+DR16+AE08
CPU Storage Area
30K
12K
Process Control
Small Time Storage Control
CPU Data Area
20K
16K
CPU Retention Area
10K
10K
Communication
MODBUS-RTU\MODBUS-TCP\PROFINET
MODBUS-RTU
CPU Station Number
Main Station for Air Compressor, Substation for DCS
Substation
Software
Optional Genuine PC Operation Software
None
Control Program Capacity
30K
6K
Human-Machine Interface
10-inch
7-inch
Standard Configuration
Standard Configuration
